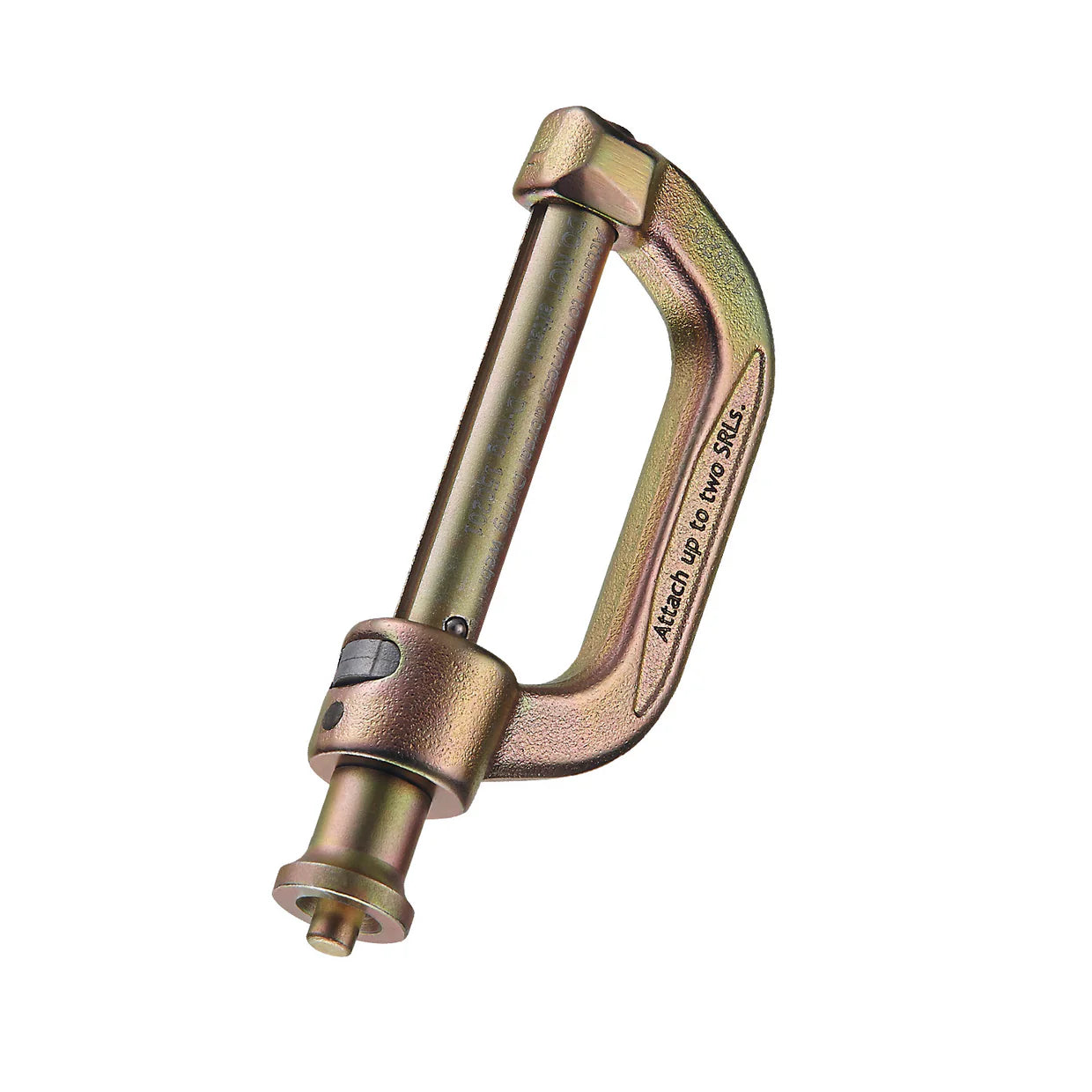

The Dual SRL Connector is engineered for workers who need a strong, secure, and compliant way to attach twin self‑retracting lifelines (SRLs) for 100% tie‑off. Built from zinc‑plated alloy steel, this heavy‑duty connector delivers the strength, durability, and ease of use required on construction, roofing, steel erection, and industrial job sites. With a 5,000 lb strength rating, a 3,600 lb gate, and OSHA/ANSI compliance, it provides a reliable connection point that stands up to demanding environments and continuous movement at height.
Key Features

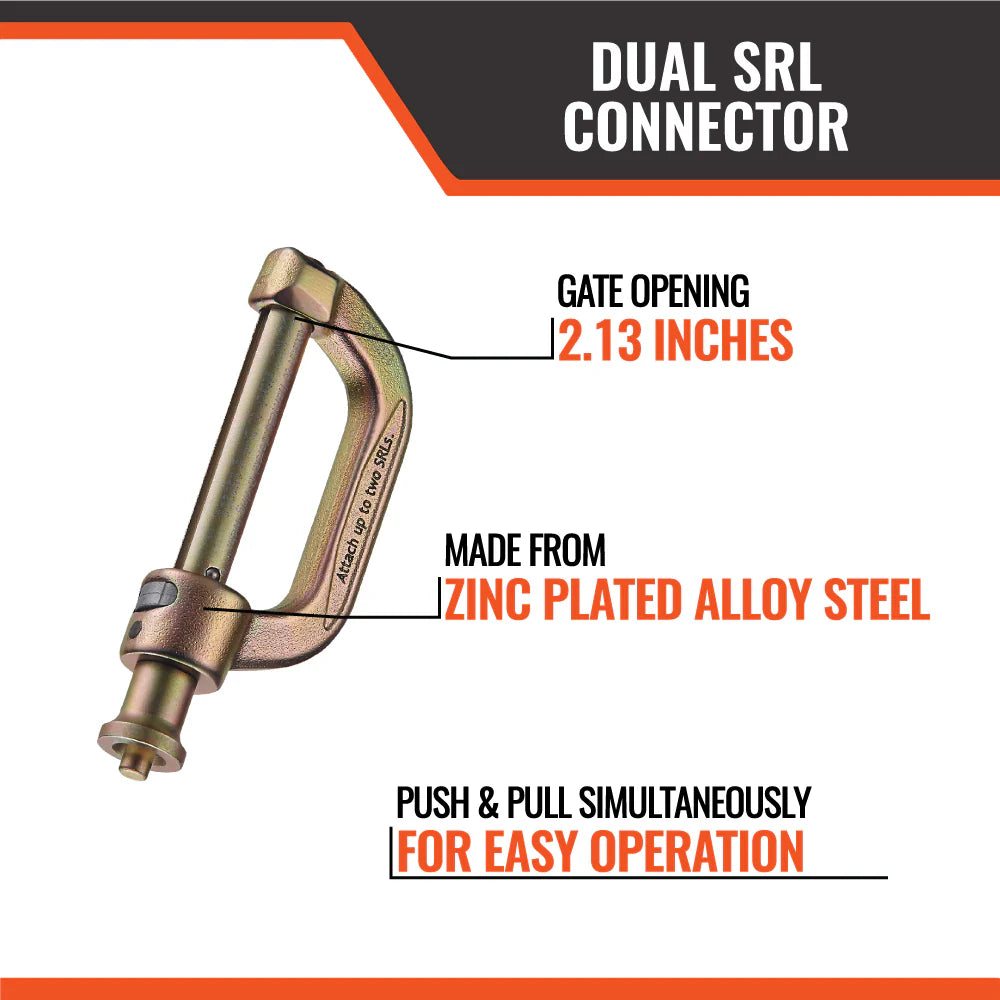

- Zinc‑plated alloy steel construction with heavy‑duty strength rated to 5,000 lbs, supporting safe SRL attachment in rugged job‑site conditions.
- Fully compliant with ANSI Z359.12‑2009, ANSI A10.32‑12, and OSHA fall‑protection standards, supporting workers in the 130–310 lb capacity range.
- Designed to maintain 100% tie‑off, allowing workers to stay continuously connected while transitioning between anchor points.

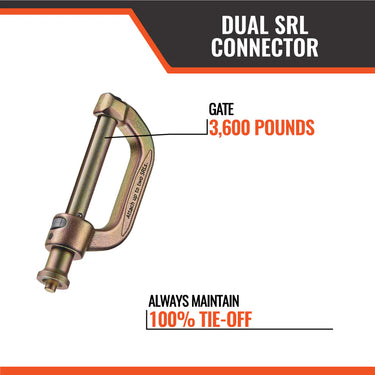

- 3,600 lb (16 kN) gate strength for secure attachment of lanyards, lifelines, or SRLs to approved anchorage points.

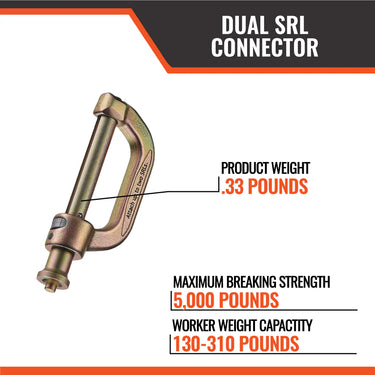

- Lightweight 0.33 lb profile that balances strength with easy handling and installation.

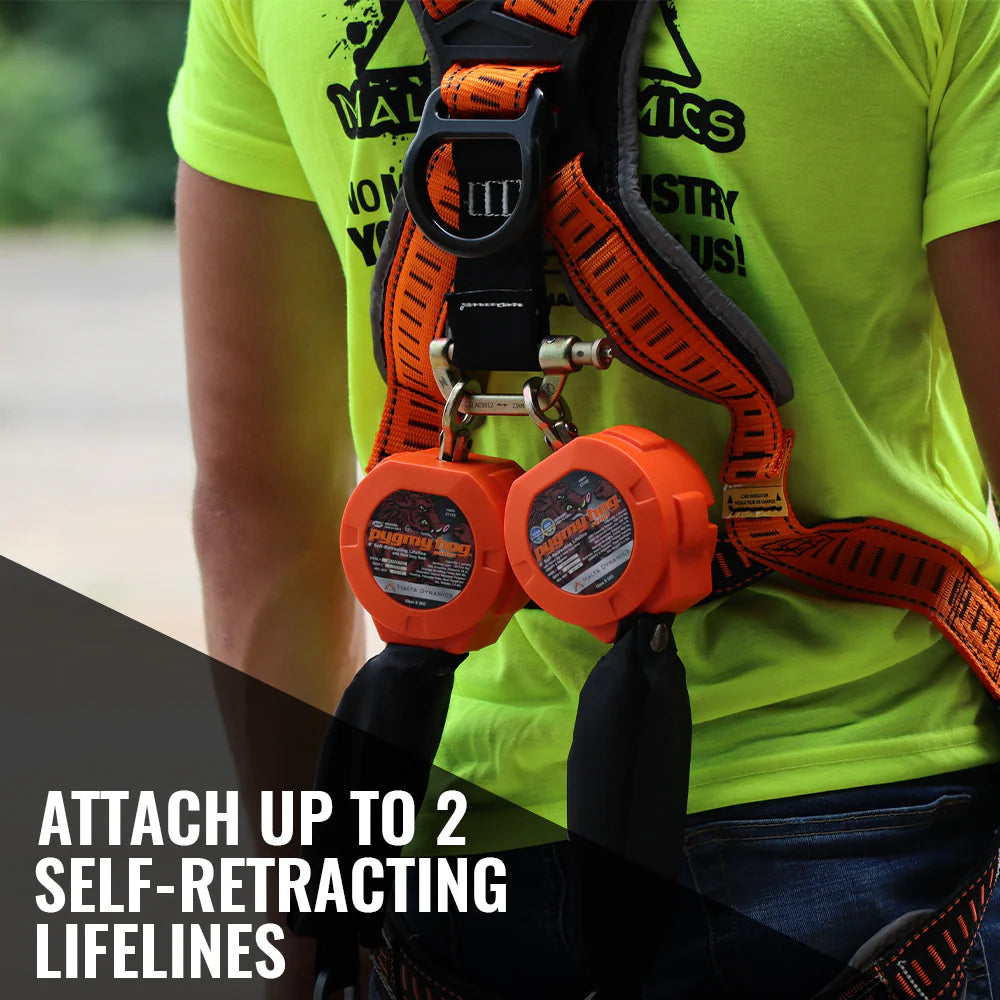

- Secure dual‑bracket system that accepts up to two compatible SRLs directly on the fixed forged loop, never on the sliding pin side.

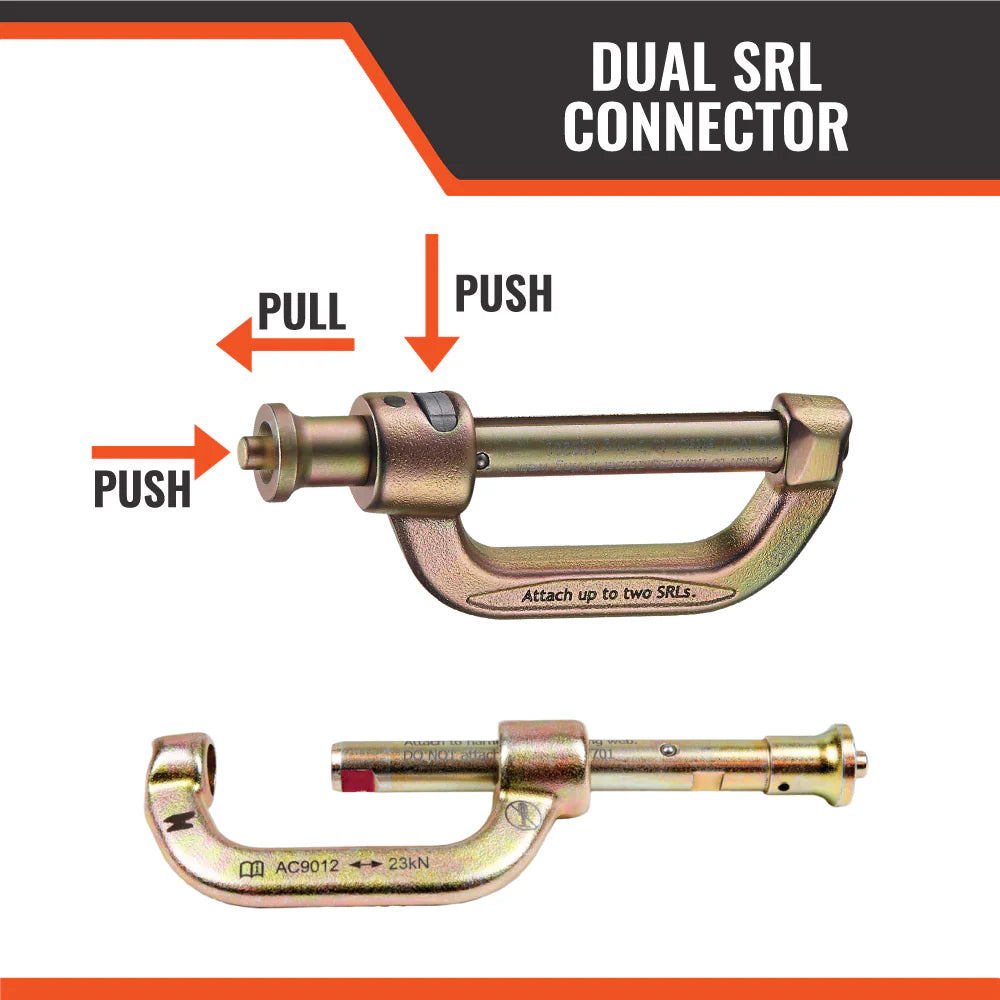

- Twist‑lock mechanism requiring two deliberate actions to open, providing added security against accidental disengagement.
- Corrosion‑resistant finish designed to withstand harsh environments, temperature swings, and long‑term exposure.
